Power Supplies

Neptune Power supply Module, 8 x 500mA Individually Fused Outputs suit NEPSDC5A01B

Product Code: NEPSM8OUT

Are you a tradesperson?

Get access to our best prices



This product is a special order (BTO) and is not returnable.
Description

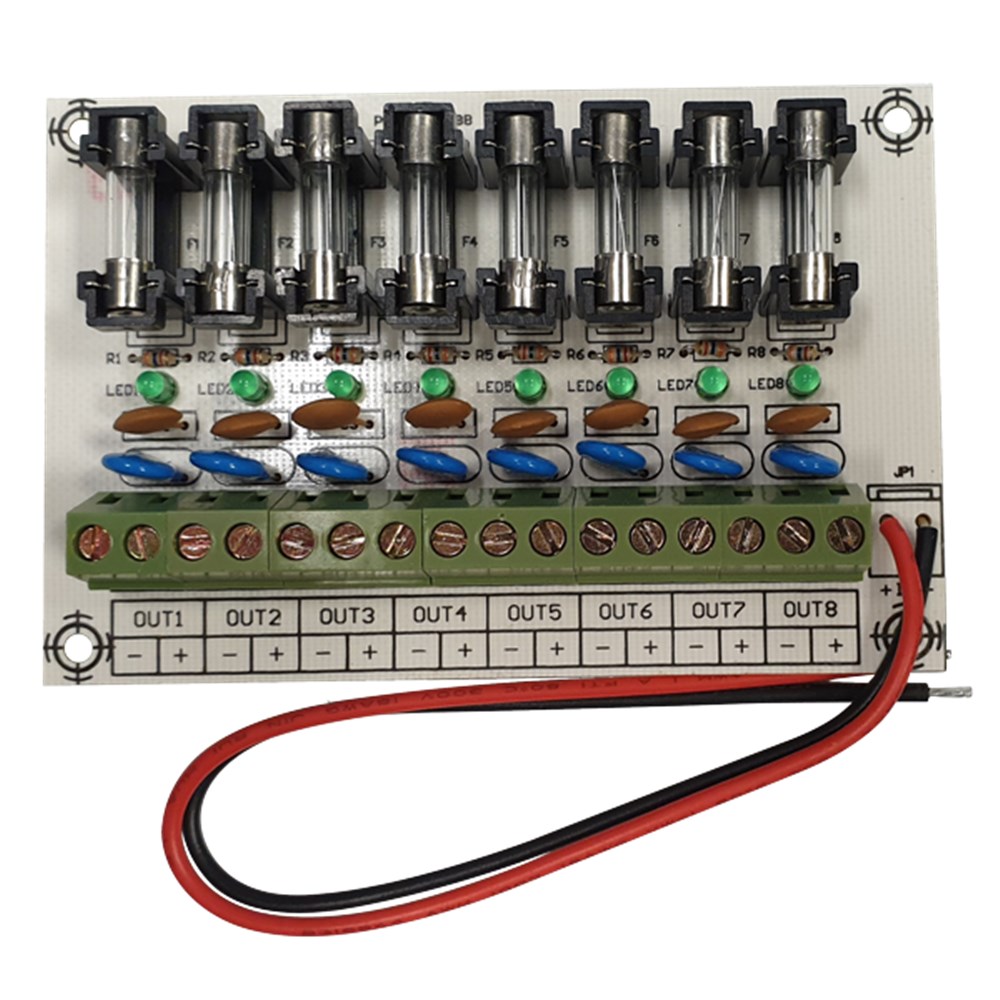

The NEPSM8OUT is designed to be added to the Neptune NEPSDC5A01B 5AMP Power Supply. It has 8 individually fused outputs, each with a replaceable 500mA fuse, LED indicators on each output and is supplied with mounting screws and standoffs.

INPUT Voltage Range 12VDC±15%
OUTPUT Voltage 12VDC±15%
Fuse Rating 500mA Glass Fuse (Replaceable)
Output Channel 8 Channels
ENVIRONMENT Temperature Working -20 - 50°C Storage -30 - 80°:C
Humidity Working 20 - 80%RH Storage 10 - 90%RH
LED Indication Green On DC output is on
Compliant Model NEPSDC5A01B
Dimension 65 x 100 mm
Technical Specifications
Brand NEPTUNE
Battery Backup No
Battery Leads Included No
Fused Outputs Yes
LED Indicators Yes
Lockable Metal Enclosure No
